FJD LM03 Line Marker Kit

FJD LM03 Line Marker Kit

Perfect Lines in Less Time, with Less Paint.

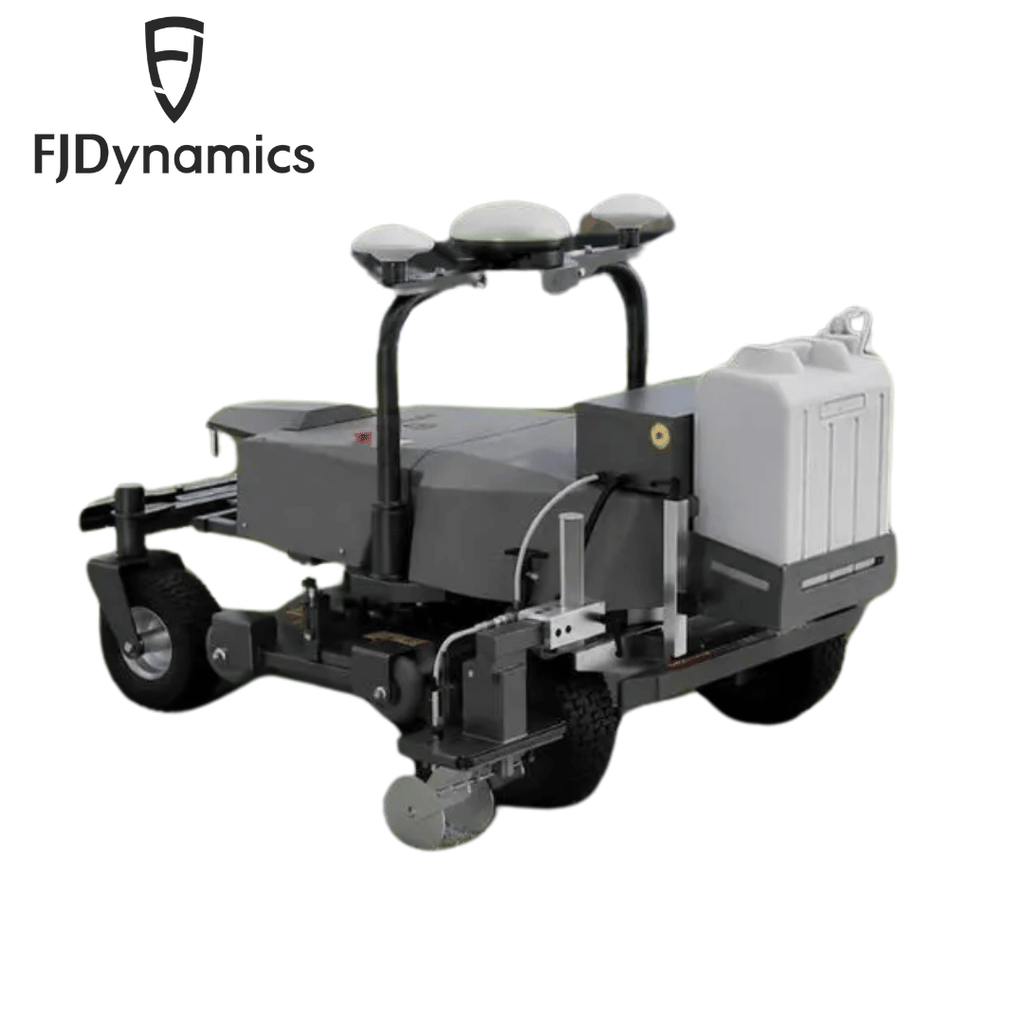

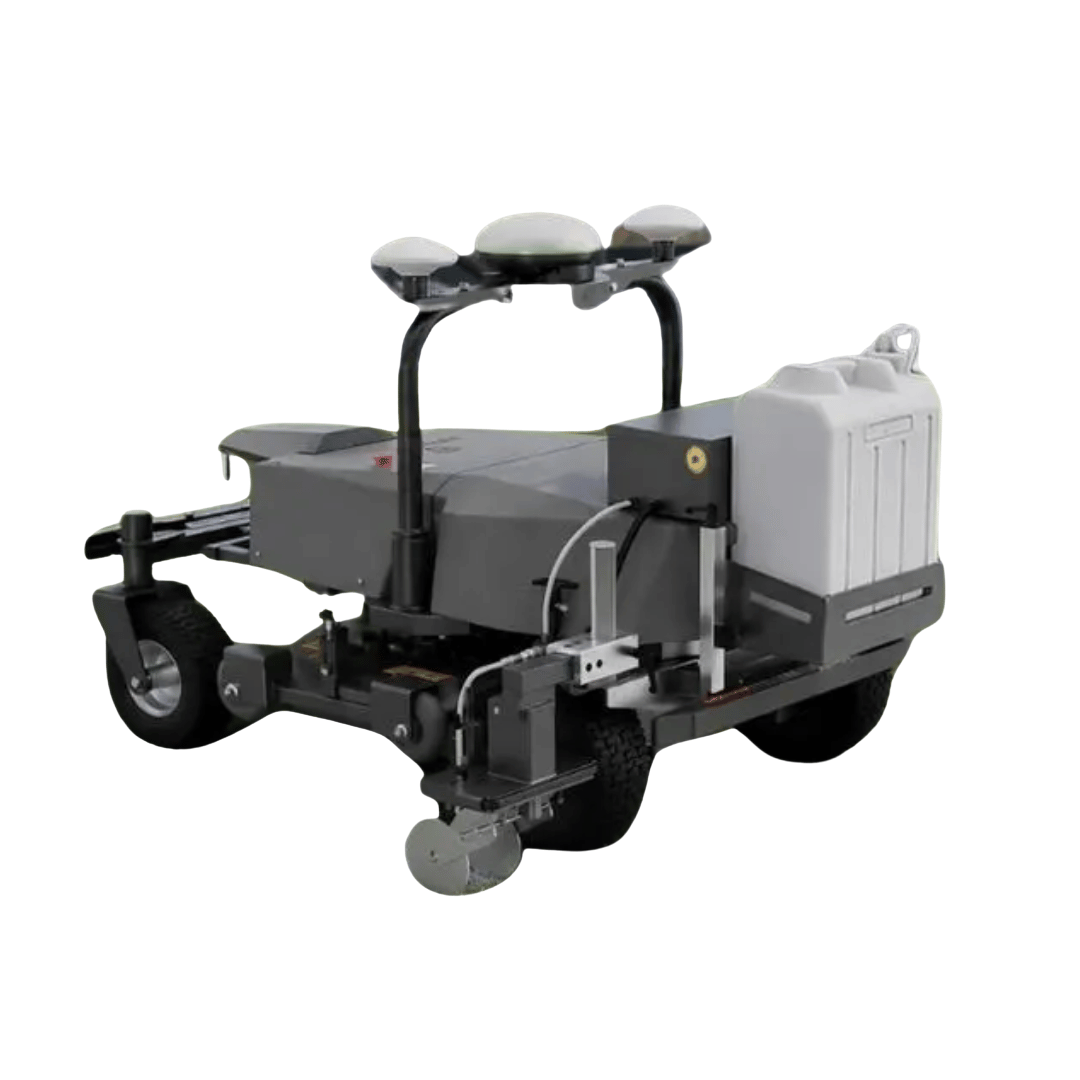

The LM03 Line Marker Kit turns Rough Ranger into an autonomous line marking machine.

Less Input, Greater Output

• Reduce Paint Usage by 50%+
  For a full-size soccer field, manual line marking requires about 8L, while the robotic line marker only needs around 4L.
• Cut Labor Costs by up to 90%
  Create the layout, start with one click, no human intervention required, saving up to 90% in labor costs.

• Mark up to 20 Full-Size Fields per Charge
  One full charge supports continuous line marking for up to 20 full-size soccer fields.

Start in Just 3 Steps

Step 1: Map
Map the field with V4e Pro in about 5 minutes.

Step 2: Fill Paint
Fill the paint tank and prepare for marking.

Step 3: Start
Start the marking task with one tap on the tablet.

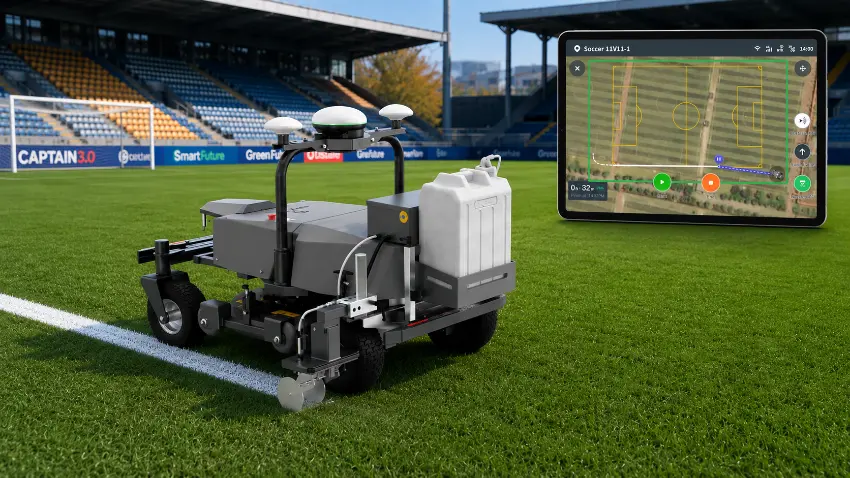

From Mowing to Line Marking

Paired with the LM03, the Rough Ranger delivers exceptional line-marking precision while reducing labor and paint usage.

Smart Autonomous Marking

One-Tap Autonomous Operation
For daily marking tasks, simply start the entire workflow with one tap - no manual intervention required.

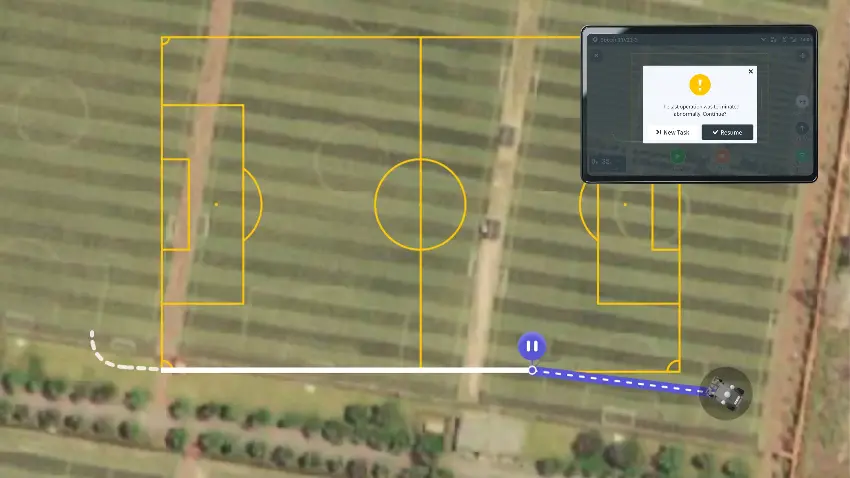

Seamless Line Marking Resume
Whether switching fields or pausing to refill paint, the robot resumes precisely where it left off - no overlapping, no wasted paint.

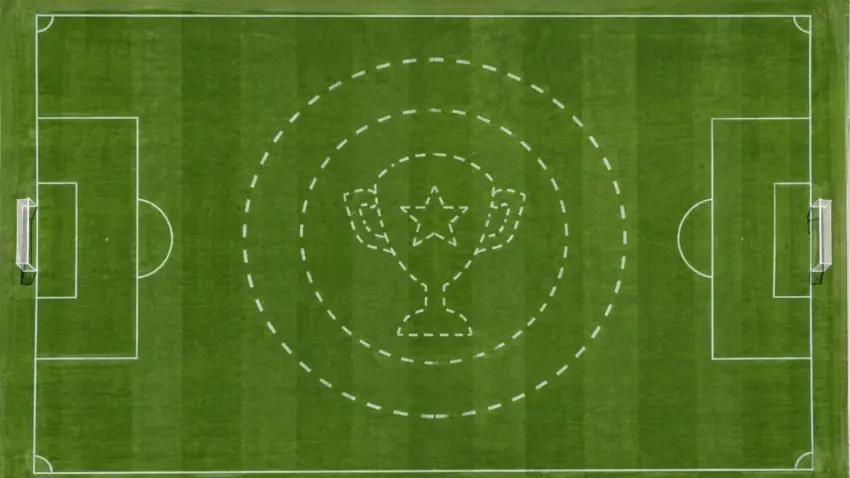

Custom Patterns for Every Field
Supports multiple patterns for soccer, rugby, baseball, American football, and more to suit different fields.

Application Scenarios

Specifications

Complete Unit

Weight (without paint): 32 kg (70.5 lb)

Dimensions: 700 × 600 × 650 mm (27.6 × 23.6 × 25.6 in.)

IP rating: IPX4

Operating temperature: 5–35 °C

Marking Performance

Max marking speed: 3 km/h (1.9 mph)

Line width range: 50–170 mm (2–6.7 in.)

Nozzle height: 30–120 mm (1.2–4.7 in.)

Paint System

Paint tank capacity: 25 L (5.5 gal)

Battery & Charging

Max marking time per charge: 20 h

Electrical System

Rated power: 150 W
